Designing More Efficient Forms: Structure, Inputs, Labels and Actions

People who use your app or site have a particular goal. Often the one thing that is standing between the user and his goal is a form. Because forms still remain the one of the most important type of interaction for users on the web and in the apps. In fact, forms are often considered to be the final step of the journey to the completion of goals.

Forms are just a means to an end. Users should be able to complete forms quickly and without confusion.

In this article, you’ll see practical guidelines that have been crafted from usability testing, field testing, eye tracking and actual complaints made by disgruntled users.

The Components Of Forms

The typical form has following six components:

  • Structure. It includes ordering for fields, appearance on the page and logical connections between multiple fields.  Input fields. They include text fields, password fields, check boxes, radio buttons, sliders and any other field designed for user input.
  • Field labels. They tell users what the corresponding input fields mean. Action buttons. When user presses the button, the action is performed (such as submitting the data).
  • Feedback. User understands the result of the input by a feedback. Most apps or sites use messages as a form of feedback. Messages notify the user about result, they can be positive (indicating that the form was submitted successfully) or negative (“The number you’ve provided is incorrect”).

Forms could also have following components:

  • Assistance. Any help that explans how to fill out the form.
  • Validation. Automatic check that ensures that user’s data is valid.

This article covers many aspects related to the structure, input fields, labels and action buttons.

Form Structure

A form is a conversation. And like any conversation, it should be represented by a logical communication between two parties — user and your app.

Only Ask What’s Required

Make sure you only ask what you really need. Every extra field you add to a form will affect its conversion rate. That’s why you should always question why and how the information you request from your users is being used.

Order the Form Logically

Details should be asked logically from a user’s perspective, not the application or database logic. Typically, it’s unusual to ask for someone’s address before their name.

Group Related Information

You should group related information in logical blocks or sets. The flow from one set of questions to the next will better resemble a conversation. Grouping related fields together also helps users make sense of the information that they must fill in. Below is an example for Contact Information.

Group together related fields. Image credits: NNGroup

One Column vs. Multiple Columns

Forms should never consist of more than one column. One of the problems with form fields in multiple columns is that your users are likely to interpret the fields inconsistently. If a form has horizontally adjacent fields, the user must scan in Z patterns, slowing the speed of comprehension and muddying the clear path to completion. But if a form is in a single column, the path to completion is a straight line down the page.

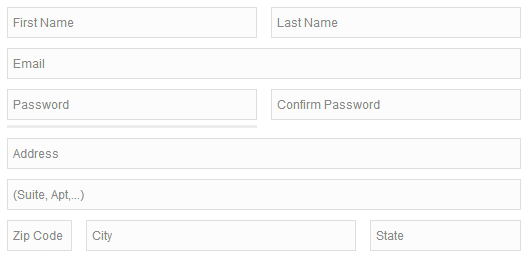

Left: One (of many) way to interpret how the form fields relate when they are arranged in a standard two column layout. Right: Straing line down the page.

Input Fields

Input fields are what allow your users to fill in your form. Depending on what information you ask, there are various types of fields — text fields, password fields, dropdowns, check boxes, radio buttons, datepickers and others.

Number of Fields

Try to minimize the number of fields as much as possible. This makes your form less loaded, especially when you request a lot of information from your users. However don’t over do it, no one likes a three field form that turns into a 30 field interrogation.

Combine multiple fields in one easy-to-fill field.

Mandatory vs Optional

Try to avoid optional fields in forms. But if you use them, you should at least clearly distinguish which input fields cannot be left blank by the user. The convention is to use an asterisk (*) or ‘optional’ (which is a preferable for long forms with multiple required fields).

Mailchimp subscribe to mailing list form.

Setting Default Values

You should avoid having a static default unless you believe a large portion of your user’s (e.g. 90%) will select that value. Particularly if it’s a required field. Why? Because you’re likely to introduce errors because people scan forms quickly online — don’t assume they will take the time to parse through all the choices. They simply may blithely skip by something that already has a value.

But smart defaults can make the user’s completion of the form faster and more accurate. For example, pre-select the user’s country based on their geo location data. But still you should use these with caution, because users tend to leave pre-selected fields as they are.

Intelligently pre-selected country in the checkout form.

Desktop-only: Make Form Keyboard-friendly

Users should be able to trigger and edit every field using only the keyboard. Power users, who tend to use keyboards heavily, should be able to easily tab through the fields and make necessary edits, all without lifting their fingers off the keyboard. You can find detailed requirements for keyboard interaction pattern in W3C’s Authoring Practices for Design Patterns.

Even a simple datapicker should be relevant to the W3C guidelines. Image credits: Salesforce

Desktop-only: Autofocus for Input Field

Autofocusing a field gives the users an indication and a starting point to quickly begin to fill out the form. You should provide a clear visual ‘notification’ that the focus has moved there — change color, fade in a box, flash in an arrow, whatever. Amazon registration form has both autofocus and visual notification for the user.

Mobile-only: Match the Keyboard With the Required Text Inputs

App users appreciate apps that provide an appropriate keyboard for text entry. Ensure that this is implemented consistently throughout the app rather than only for certain tasks but not others.

Labels

Clear label text is one of the primary ways to make UIs more accessible. Labels tell the user the purpose of the field, maintain their usefulness when focus is placed inside of the field and should remain even after completing the field.

Number of Words

Labels are not help texts. You should use succinct, short and descriptive labels (a word or two) so users can quickly scan your form. Previous version of the Amazon registration form contained a lot of extra words which resulted in slow completion rates.
Current version is much better and has short labels.

Sentence Case vs Title Case

Should it be “Full Name” or “Full name”? Sentence case is slightly easier (and thus faster) for reading than title case. But one thing for sure — you should never use all caps, or else the form would be difficult to read and much harder to quickly scan, as there are no differences in character hight any more.

“All Caps” labels are very hard to read.

Alignment of Labels: Left vs Right Aligned vs Top

Matteo Penzo’s 2006 article on label placement implies that forms are completed faster if the labels are on top of the fields. They are good if you want users to eye-scan the form as fast as possible.

Left-aligned labels, right-aligned labels and top labels. Image credits: uxmatters

However, further research mentioned found no difference between labels above the fields and right-aligned labels.

Top aligned labels. The biggest advantage to top-aligned labels —  they make it easier for different sized labels and localized versions to fit easier within the UI (this is especially good for mobile screens with a limited estate). Left-aligned labels. The biggest disadvantage to left-aligned labels is the slowest completion times. This is likely because of the visual distance between the label and input field. The shorter the label, the further away it is from the input. But slow completion rates aren’t always a bad thing, especially if the form requires important data. If you are asking for things like Driver’s License or Social Security Number, you may implicitly want to slow users down a bit and make sure they enter things correctly. Right-aligned labels. The big advantage to right-aligned labels is the strong visual connection between label and input. Because items near each other appear related. This principle of placing related items closer to each other isn’t new; it’s actually the Law of Proximity from Gestalt psychology. For shorter forms, right-aligned labels can have great completion times. Right-aligned labels disadvantage comes from comfortability. Such form will lack that hard left edge, which makes it less comfortable to look at and harder to read. Takeaway: If you want users to scan out a form fast, put your labels above each field. This layout is easier to scan as the eyes move straight down the page. However if you want your users to read carefully, put the labels to the left of the fields. This layout is read in a slower down and right (Z shape) motion.

Inline Labels (Placeholder Text)

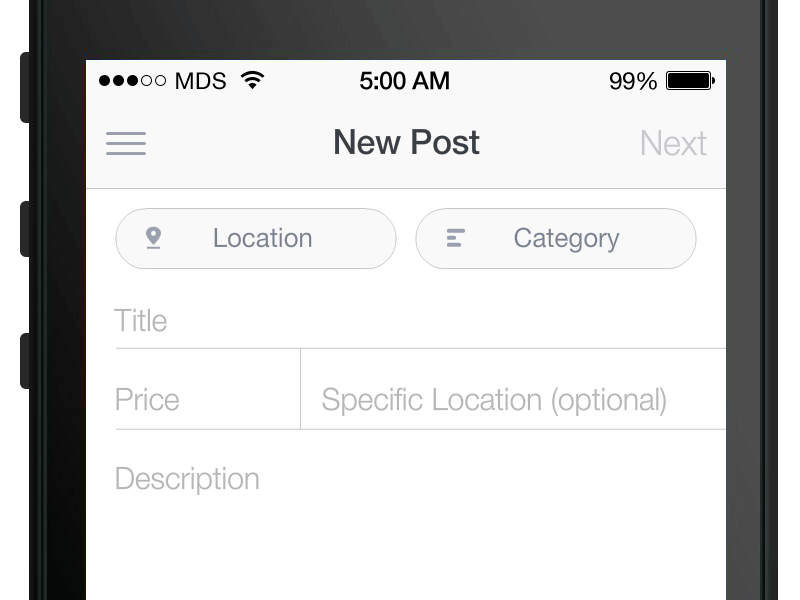

Placeholder text works great for a simple username and password form.

Image source: snapwi

But it’s a poor replacement for a visual label when there is more information. Yes they are very popular, and yes they do look nice. But once the user clicks on the text box, the label disappears and thus the user cannot double check that what he/she has written is indeed what was meant to be written. Another thing is that when users see something written inside a text box, they may assume that it has already been prefilled in and may hence ignore it.
Good solution for the placeholder text is a floating label. The placeholder text is showing by default, but once an input field is tapped and text is entered the placeholder text fades out and a top aligned label animates in.
Takeaway: Don’t just rely on placeholders, include a label as well. As once a field has been filled out, the placeholder is no longer visible. You can use floating label which ensure users that they filled out the correct field.

Action Buttons

When clicked, these buttons trigger an action such as submitting the form.

Primary vs Secondary Actions

Lack of visual distinction between primary and secondary actions can easily lead to failure. Reducing the visual prominence of secondary actions minimizes the risk for potential errors and further directs people toward a successful outcome.

Equal visual weight vs Visual distinctions. Image credits: Lukew

Button Location

Complex forms usually need a back button. If such button is located right below the input fields (like on the first shot) users can accidentally click it. As back button is a secondary action it should be placed out of sight (second form has right location for buttons).

Left: Wrong back button location. Right: Back button is almost invisible for users (both because location and color contrast with proceed).

Naming Conventions

Avoid generic words such as “Submit” for actions, because they give the impression that the form itself is generic. Instead state what actions the buttons do when clicked, such as ‘Create my FREE account’ or ‘Send me weekly offers’.

Image credit: uxmovement

Multiple Action Buttons

Avoid multiple action buttons since it might distract users from the goal (submitting the form).

The ‘Reset’ Button Is Pure Evil

Don’t use a ‘reset’ button. The web would be a happier place if virtually all Reset buttons were removed. This button almost never helps users, but often hurts them.

Visual Appearance

Make sure action buttons look like buttons. Style them in a way that they lift (thus, indicates that it is possible to click). For more information about button you can read article Button UX Design: Best Practices, Types and States

Visual Feedback

You should design your ‘submit’ button in a way that it should clearly indicate that the form is being processed after user’s action. This provides feedback to the user whilst also avoiding double posts.

Conclusion

Users can be hesitant to fill out forms, so you should make this process as easy as possible. Minor changes — such as group related fields and indicating what information goes in each field — can significantly increase form usability. Usability testing is simply indispensable in form design. Very often, carrying out just a few tests or simply asking a colleague to go through a prototype of the form can give you a good insights in how usable the form is.

In upcoming articles I’ll try to cover a feedback and validation for the forms, so stay tuned.
